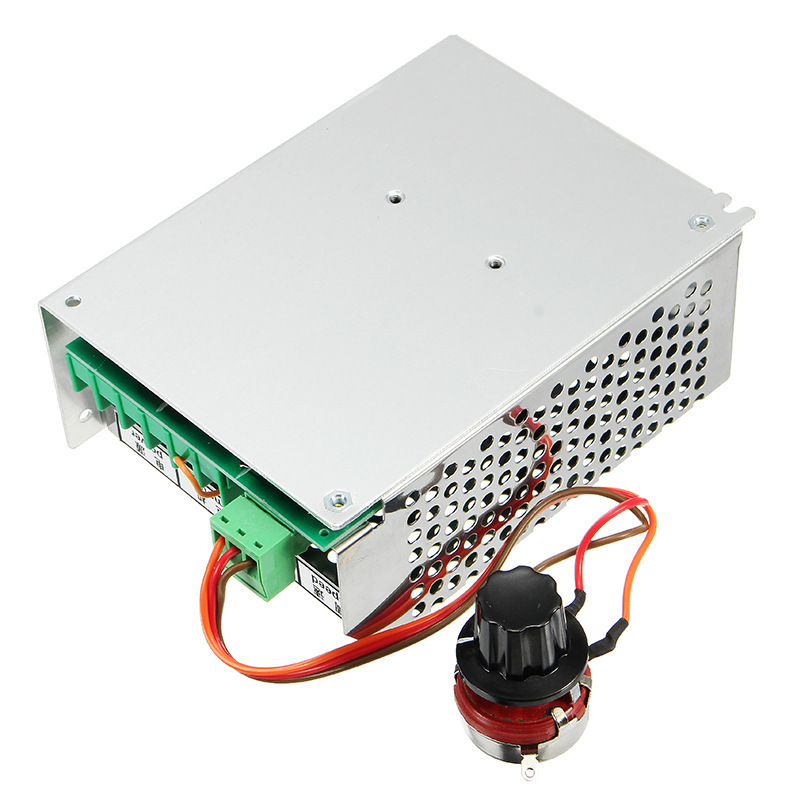

500W Air Cooled Spindle Motor Speed Regulator Fixture PCB Engraving

135.44 €

Spindle parameters: Working voltage: 12-100vdc Idle speed: 2000-12000rpm Power: 500W Torque: 0.5nm Insulation resistance: > 2 megohm Insulation dielectric strength: 400V Diameter: 52mm Chuck part length: 45mm The diameter of chuck part is 16mm Total length of motor: About 190mm The radial runout of the spindle is 0.01-0.03 with high accuracy Can be used for solid wood PCB engraving drilling and so on Detailed technical parameters of governor: 1. Input voltage ac110-ac220v ± 10% global voltage 50 / 60Hz 2. Current limiting: 6A 2. Suitable motor power: 50W ~ 500W 3. Armature output voltage: dc0 ～ 100V adjustable 4. Overall dimension: length 130mm × width 100mm × height 51mm 5. Connection mode: terminal type (convenient and fast)
